VOLVO EC460 Bulldozer Track Drive Sprocket with 4-10 mm HRC Depth G33MnCrMo5 Material and Flexible Payment Terms

VOLVO EC460 Bulldozer Track Drive Sprocket with 4-10 mm HRC Depth G33MnCrMo5 Material and Flexible Payment Terms

Λεπτομέρειες:
Τόπος καταγωγής:	Κίνα
Μάρκα:	YT
Αριθμό μοντέλου:	EC460
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min:	1 ΤΕΜ
Τιμή:	negotiable
Συσκευασία λεπτομέρειες:	Τυποποιημένη συσκευασία
Χρόνος παράδοσης:	7-30 ημέρες
Όροι πληρωμής:	L/C,T/T
Δυνατότητα προσφοράς:	10000 τεμ./Μήνα

Επικοινωνήστε

Λεπτομερής ενημέρωση
Υλικό:	G33MnCrMo5, G33Mn4, SCMnCr4B, ZG40Mn, και ZG35Mn	Τεχνική:	Χύτευση/Σφυρηλάτηση
Όρος τιμής:	FOB/CFR/CIF	Βαθμός HRC:	4-10 mm
Χρώμα:	Μαύρο/Κίτρινο	Εφαρμογή:	Μπουλούκος
Χρόνος Εγγύησης:	2000 ώρα	Ονομα:	Τμήμα/Γρανάζι
Επισημαίνω:	4-10 mm HRC Depth Track Drive Sprocket , G33MnCrMo5 Material Undercarriage Sprocket , Flexible Payment Terms Segment Sprocket

Περιγραφή προϊόντων

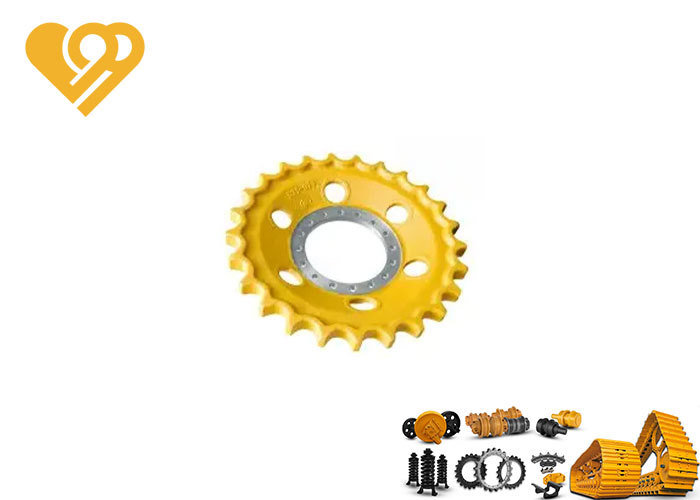

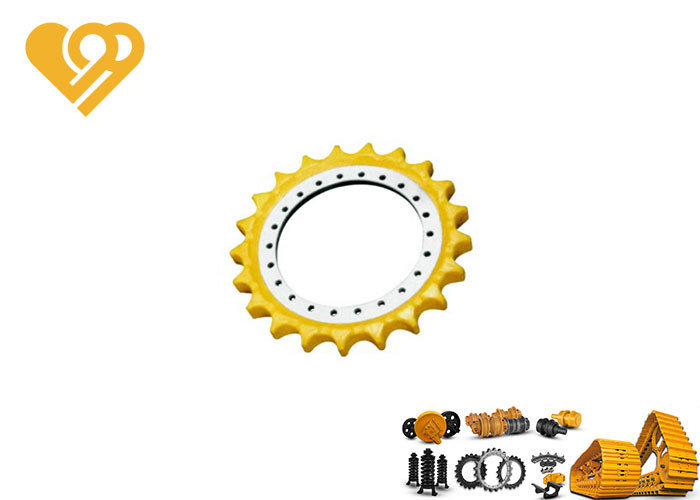

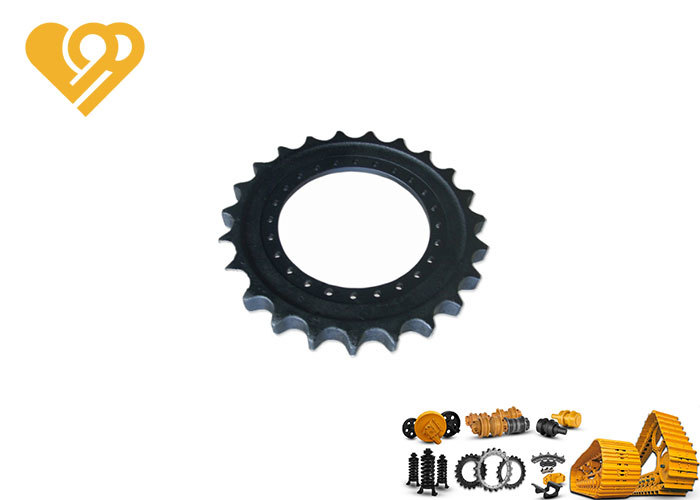

VOLVO Bulldozer Professional Quench-Tempering Undercarriage Spare Parts EC460 Track Drive Sprockets with Flexible Payment Terms

What Is Sprocket?

A sprocket is a contoured wheel with teeth or cogs that interlock with a chain, track, or other perforated/notched components. The term "sprocket" broadly refers to any wheel with radial projections designed to engage with a chain traveling over it.

Sprockets can be mounted on either the front or rear of a vehicle—sometimes both. In specific configurations, an additional elevated sprocket may also be included to power the track.

G33MnCrMo5, G33Mn4, SCMnCr4B, ZG40Mn, and ZG35Mn materials are used for sprocket depending on the model, size and working conditions. The surface hardness reaches HRC48-56 with minimum hardness depth between 5-10mm(HRC45) after the heat treatment process. The sprocket is able to operate even under harsh working conditions with long wear resistance and remarkably improved service life, leading to reduction of our customers' operating costs.

Sprocket Advantages / Features

By employing sophisticated quenching and tempering methods, we ensure our components exhibit exceptional mechanical attributes, including impressive strength and outstanding resistance to wear, as well as the capacity to endure bending and breaking forces.
Created in a state-of-the-art machining environment and utilizing vertical CNC turning machinery, our products are manufactured to meet the highest levels of precision.
With a surface hardness ranging from HRC48 to HRC56, our products are designed to minimize wear and extend their lifespan, thereby enhancing the value of your offerings and bolstering the longevity of your business by ensuring the extended durability of your products.
