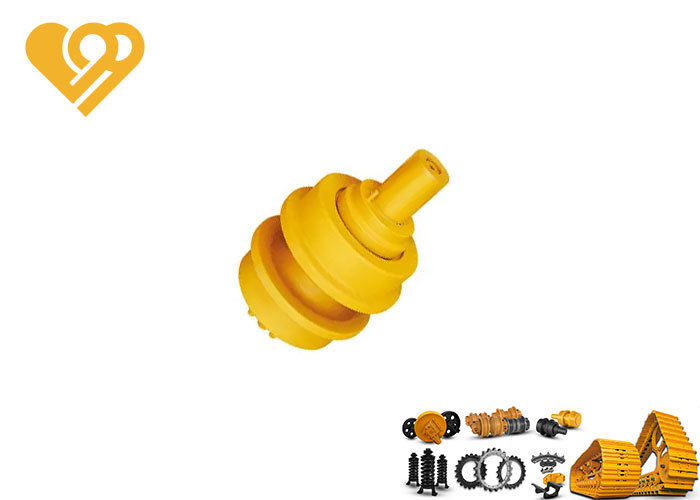

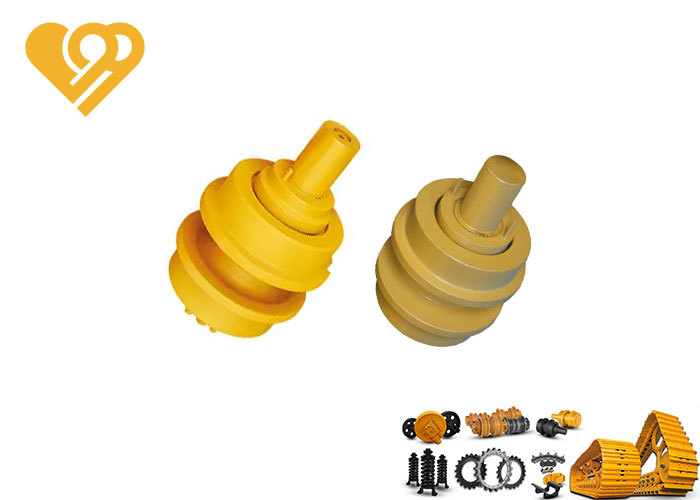

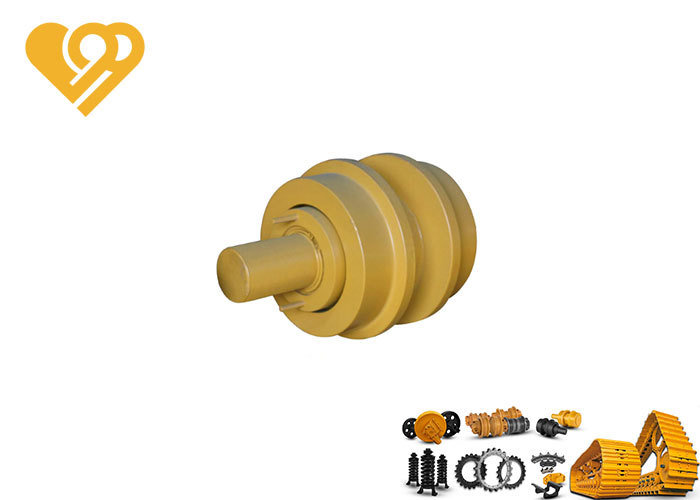

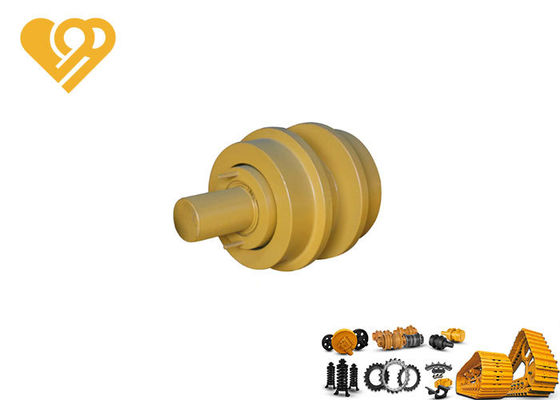

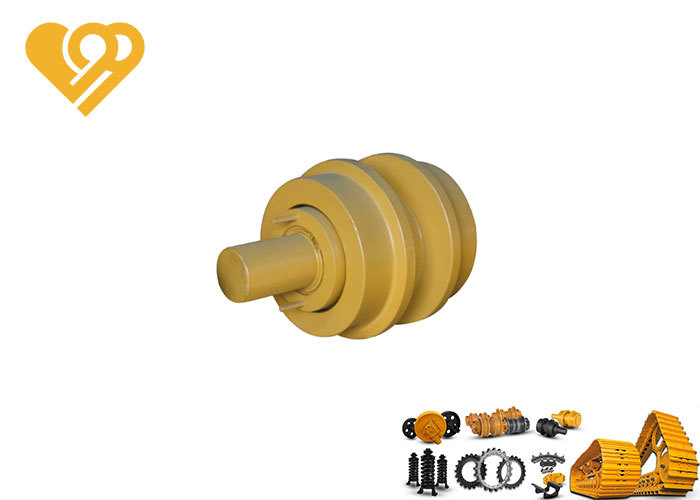

50Mn Steel Track Carrier Roller with 40MnB Material and Smooth Finish for Heavy Duty Excavator Undercarriage

50Mn Steel Track Carrier Roller with 40MnB Material and Smooth Finish for Heavy Duty Excavator Undercarriage

Λεπτομέρειες:
Τόπος καταγωγής:	Κίνα (ηπειρωτική χώρα)
Μάρκα:	YT
Αριθμό μοντέλου:	D50
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min:	1 ΤΕΜ
Τιμή:	negotiable
Συσκευασία λεπτομέρειες:	Τυπική συσκευασία εξαγωγής
Χρόνος παράδοσης:	7-30 ημέρες
Όροι πληρωμής:	L/C,T/T
Δυνατότητα προσφοράς:	10000 τεμ./Μήνα

Επικοινωνήστε

Λεπτομερής ενημέρωση
Υλικό:	40Mn2, 40MnB, 50Mn	Τεχνική:	Σφυρηλάτηση/χύτευση
Ποιότητα:	Θερμική επεξεργασία HRC 40-55	Χρώμα:	Κίτρινο ή μαύρο ή όπως απαιτείται από τον πελάτη
Χρόνος εγγύησης:	12-18 μήνες	Φινίρισμα:	Λείος
Λιμάνι αποστολής:	ξαμιέν	Πακέτο μεταφορών:	Ως αίτημα του πελάτη
Επισημαίνω:	50Mn Steel Track Carrier Roller , 40MnB Material Excavator Top Roller , Smooth Finish Undercarriage Support Roller

Περιγραφή προϊόντων

CATERPILLAR Construction Machinery Heavy Duty Undercarriage Spare Parts D50 Track Carrier Support Roller OEM Top Roller

What is a roller?

The roller is a crucial component of belt conveyors, available in steel and plastic varieties. It supports both the conveyor belt and material weight, accounting for 35% of total conveyor cost and generating over 70% of system resistance.

Our track and carrier rollers are manufactured from 40Mn2, 40MnB, or 50Mn steel, depending on application requirements. Through precision forging and heat treatment, we achieve surface hardness of HRC52-56 with hardened layer depth exceeding 7-10mm (HRC45) for exceptional durability.

Featuring high-quality floating seals and advanced lubrication systems, our rollers operate reliably in extreme temperatures from -45℃ to 120℃ with minimal maintenance requirements.

Carrier Rollers Excavator Advantages / Features

Specialized quench-tempering processes deliver superior mechanical properties, high strength, and excellent resistance to bending, breakage, and wear
Surface hardness of HRC 40-55 significantly reduces wear and extends service life
Precision engineering ensures proper installation, grouser compatibility, and heavy load capacity up to 50 tons
Consistent quality and cost-effectiveness for long-term performance

Main Dimensions of Installation

Brand	Model	A	B	D	L	M	N	O	Remarks
Caterpillar	E307	440	407	100	236	176	40	50	Models shown for reference only. Custom products available upon request.
	E100B	480	450	130	270	216	46	60
	E120B	480	450	130	270	216	46	60
	E200B	540	500	160	300	270	60	65
	E215	480	450	130	270	216	46	60
	E312	480	450	130	270	216	46	60
	E320	540	500	160	300	270	60	65
	E330	680	636	214	373	350	60	85

Why Choose Us?

World-class manufacturing quality
Factory-direct pricing
Flexible payment terms (T/T, L/C, etc.)
Fast delivery within 30 days
Professional sales and quality control teams
Comprehensive after-sales support

Hot Sale Products

Are you a trader or manufacturer?
We are an integrated business with manufacturing in Quanzhou and sales operations in Xiamen.
How to ensure part compatibility?
Provide model/serial numbers, part markings, or detailed measurements.
Payment terms?
Typically T/T or L/C, with other options negotiable.
Minimum order quantity?
Normally $5000 USD, accepting both FCL and LCL shipments.
Delivery time?
35-45 days for standard orders, 7-10 days for in-stock items.
Quality control?
Comprehensive QC system monitoring all production stages.
