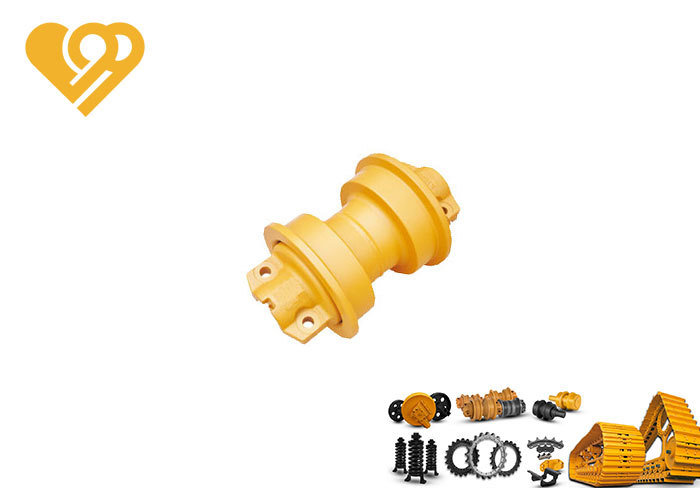

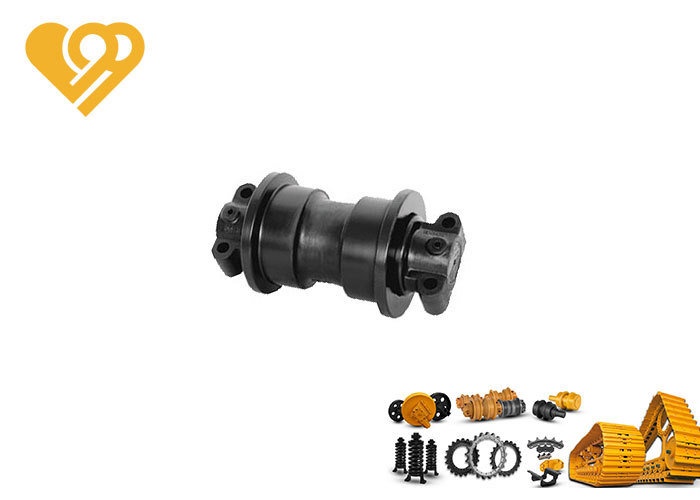

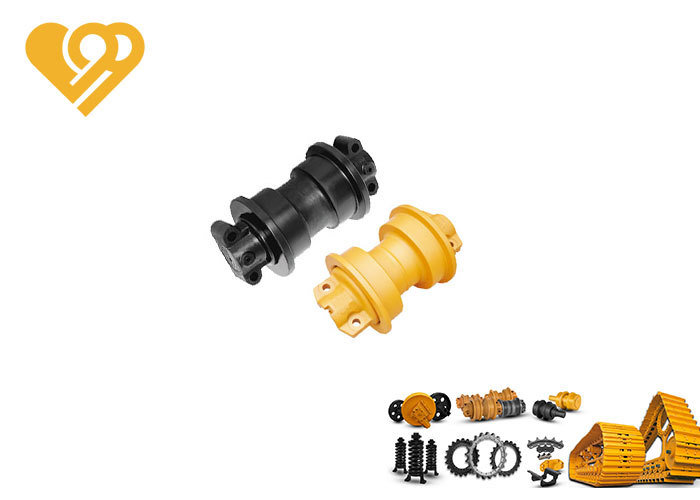

D500/D600 Bulldozer Bottom Track Rollers with Temperature Range -45℃ to 120℃ and Precision Forging for Heavy Load Capacity

D500/D600 Bulldozer Bottom Track Rollers with Temperature Range -45℃ to 120℃ and Precision Forging for Heavy Load Capacity

Λεπτομέρειες:
Τόπος καταγωγής:	Κίνα (ηπειρωτική χώρα)
Μάρκα:	YT
Αριθμό μοντέλου:	D500
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min:	1 PCS
Τιμή:	negotiable
Συσκευασία λεπτομέρειες:	Συσκευασία εξαγωγής
Χρόνος παράδοσης:	7-30 ημέρες
Όροι πληρωμής:	L/c, t/t
Δυνατότητα προσφοράς:	10000 τεμ./Μήνα

Επικοινωνήστε

Λεπτομερής ενημέρωση
Υλικό:	40mn2、40mnb 、 50mn	Τεχνική:	Σφυρηλάτηση/χύτευση
Χρώμα:	Κίτρινο ή μαύρο ή όπως απαιτείται από τον πελάτη	Αποστολή:	Με αέρος, πλοίο και ταχεία
Όνομα μέρους:	Κυλίνδρος	Πιστοποίηση:	ISO9001
Χαρακτηριστικά:	διαρκής	Βαθμός HRC:	7-10 mm (HRC45)
Επισημαίνω:	Temperature Range -45℃ to 120℃ Bottom Track Rollers , D500/D600 Model Track Rollers , Precision Forging Undercarriage Rollers

Περιγραφή προϊόντων

Construction Machinery D500 D600 Bulldozer Undercarriage Spare Parts D500/D600 Conveyor Bottom Track Rollers with OEM and Performance

About Track Rollers

As a core component of belt conveyors, the roller comes in diverse types and large volumes, serving to support the conveyor belt and bear the weight of transported materials. It accounts for 35% of a belt conveyor's total cost while contributing to over 70% of the conveyor's total resistance—making its quality critically important.

Material & Manufacturing

Track rollers are manufactured from 40Mn2, 40MnB, or 50Mn steel, selected based on specific operating conditions. These rollers undergo precision forging followed by normalization and full heat treatment, achieving:

Surface hardness of HRC 52-56
Hardened layer depth over 7-10mm (maintaining HRC 45 at core)
Exceptional durability with strong impact resistance
Superior surface wear resistance at contact points

Performance Features

Through quench-tempering processes for excellent mechanical properties
High strength and superior wear resistance to bending and breakage
Surface hardness HRC40-55 for reduced wear and longer life
Heavy load capacity up to 50 tons
Temperature range: -45℃ to 120℃
Maintenance-free operation with high-performance floating seals

Production Processes

Track Roller Structure

Installation Dimensions

Main Parameters

Brand	Model	A	B	E	G	M	L
Bulldozer Series	D20	155	135	130	264	194	15
Bulldozer Series	D3C	178	152	155	274	230.5	13.5
Bulldozer Series	D30	198	170	154	285	240	17.5
Bulldozer Series	D31	198	170	154	285	240	17.5
Bulldozer Series	D4	230/219	203	174	358.5	298	17
Bulldozer Series	D4D	230/219	203	174	358.5	298	17
Bulldozer Series	D5	233	204	208	369	317.5	17
Bulldozer Series	D6D	246	210	228	400	330.5	20.5
Bulldozer Series	D7	256	222	248	439.5	368.3	20
Bulldozer Series	D7G	256	222	248	439.5	368	245
Bulldozer Series	D8K	300	280	296	533.6	428.6	27
